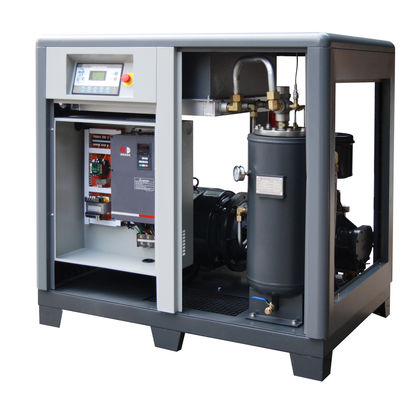

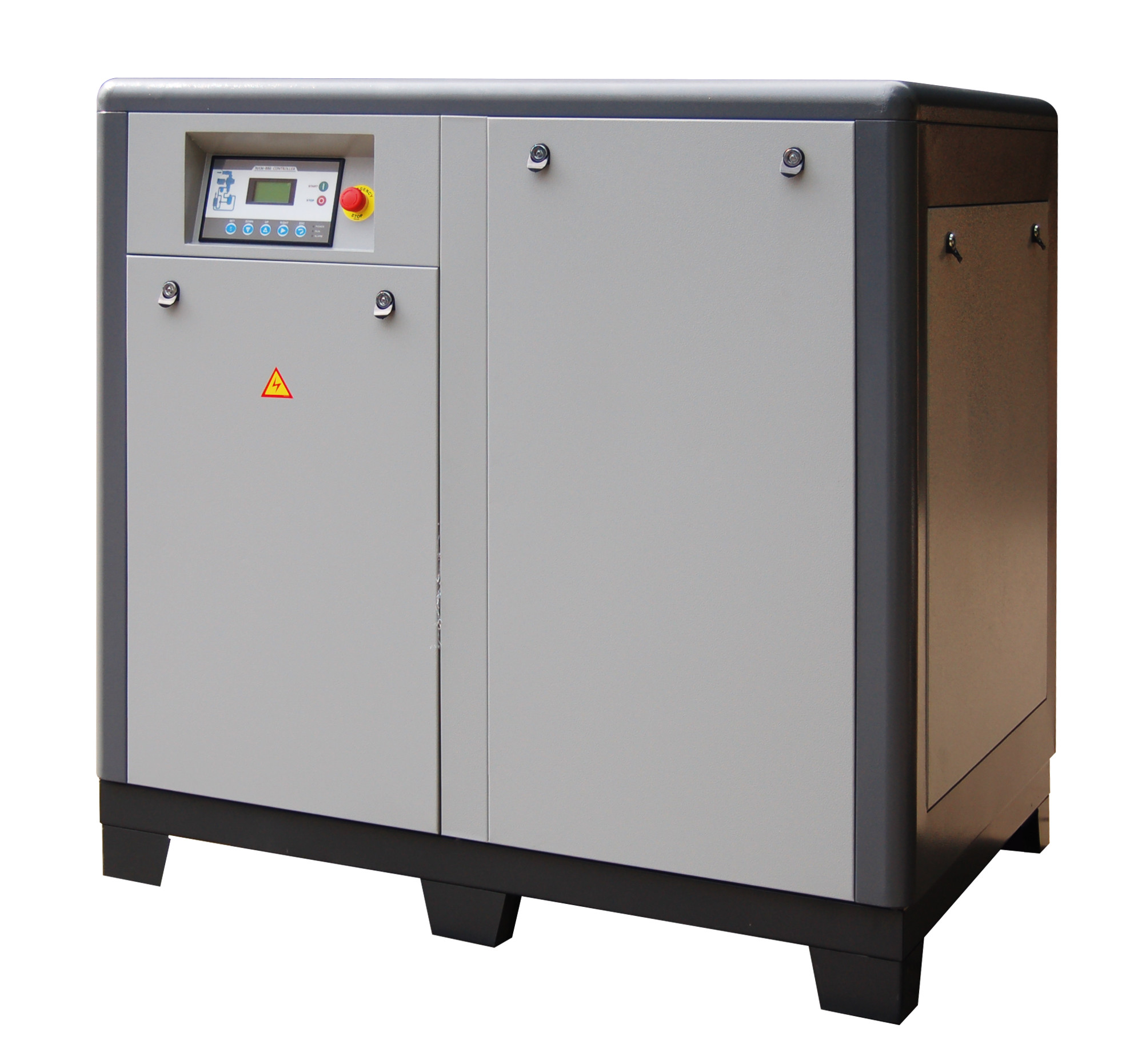

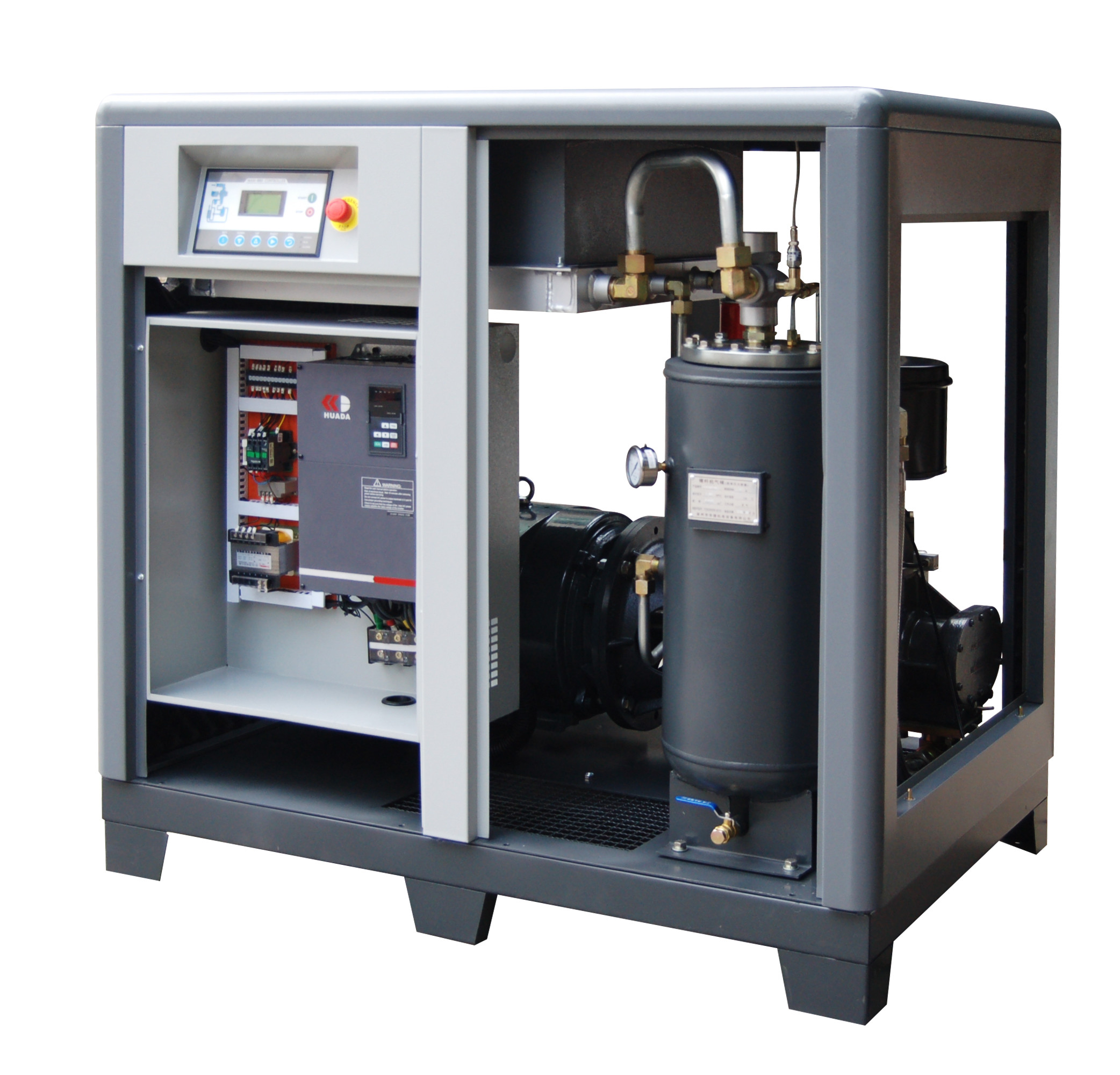

Portable Industrial Screw Compressor 30HP 580KGS Blue

  • Portable Industrial Screw Compressor 30HP 580KGS Blue
  • Portable Industrial Screw Compressor 30HP 580KGS Blue
  • Portable Industrial Screw Compressor 30HP 580KGS Blue
Luogo di origine La CINA
Marca OEM
Certificazione CE
Numero di modello CHIC-30A
Quantità di ordine minimo 500
Prezzo USD 40-45
Imballaggi particolari dimensione d'imballaggio (L×W×H): 1300mm×850mm×1210mm
Tempi di consegna 7days
Capacità di alimentazione 500PCS/DAY

Contattimi gratis campioni e buoni.

whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

Se avete di preoccupazione, forniamo la guida in linea di 24 ore.

x
Dettagli
Nome diretto di 22kw 30hp CHIC-30A guidato ha utilizzato il compressore d'aria rotatorio della vite Mandata aria ³ /min di 3.4m
ELETTRICITÀ 380/60 o 440/60 trifase (V//Hz) Pressione 8bar
livello acustico 62±2dB Potere 30HP/22KW
N.weigh 580KGS Colore blu
Evidenziare

580KGS industrial screw compressor

,

18L industrial screw compressor

,

18L portable screw compressor
Lasciate un messaggio
Descrizione di prodotto



Oil FILTER

The filter fineness is 25UM , which can guarantee the clean lubricating oil supply to the main system and improve the service life of the air end

REFRIGERATED AIR DRYER

High efficiency energy saving with high presicion pressure gauge

Permanent Magnet synchronous motor

NO electirc excitation no fundamental

wave iron , less copper loss and less calorific value whose efficiency is 5-12% higher than that of the same capacity asynchronous motor

Adopt advanced numerical control processing erquopment for production with high precision and reliability

Low -speed design strict correction of dynamic balance ,computer - optimized design make the operation more stable

Lower noise . longer life more reliable qulity suitable for 24-hour continuous operation

Using advanced surface spraying decoration technology , the product is beautiful and elegant





Portable Industrial Screw Compressor 30HP 580KGS Blue 0





Technical parameters



Model CHIC-30A
Power 30HP/22KW
FAD: (M3/MIN) 3.4
Pressure 8 bar
Cooling Air-cooling
Lubricant 18L
Noise level 68±2dB
Drive method Belt drive type
Discharge temperature Environment temp+15℃
Electricity Three phase 220/60 or 440/60 (V//Hz)
Starting method Y-△ starter
Air outlet: Pipe diameter(inch) R1
delivery 15-20 days
Oil content of air <2ppm
Dimension 1300MM*850MM*1210MM
Net weight 580KGS


Packaging & Shipping


Packaging Details
Standard export carton or plywood case 1pcs/box
Port
Shanghai/Ningbo



Portable Industrial Screw Compressor 30HP 580KGS Blue 1
