11KW/15HP Reciprocating Oil Free Piston Air Compressor Head Belt Driven

  • 11KW/15HP Reciprocating Oil Free Piston Air Compressor Head Belt Driven
  • 11KW/15HP Reciprocating Oil Free Piston Air Compressor Head Belt Driven
Luogo di origine La Cina
Marca OEM
Certificazione CE
Numero di modello DV-3120
Quantità di ordine minimo 500
Prezzo USD 40-45
Imballaggi particolari dimensione d'imballaggio (L×W×H): 650mm×500mm×455mm
Tempi di consegna 7days
Capacità di alimentazione 500Pcs/Day

Contattimi gratis campioni e buoni.

whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

Se avete di preoccupazione, forniamo la guida in linea di 24 ore.

x
Dettagli
Nome Testa senza olio ricambiante azionata a cinghia del compressore d'aria del pistone 11KW/15HP Mandata aria ³ /min di 0.6m
Cilindro 120mm*3 Pressione 1.6Mpa/115psi
N.weigh 25kgs Meas (millimetro) 600*470*355
Velocità 930RPM Potere 11KW/15 HP
Evidenziare

11 kW testa del compressore d'aria a pistoni

,

Capo del compressore d'aria a pistoni da 15 CV
Lasciate un messaggio
Descrizione di prodotto

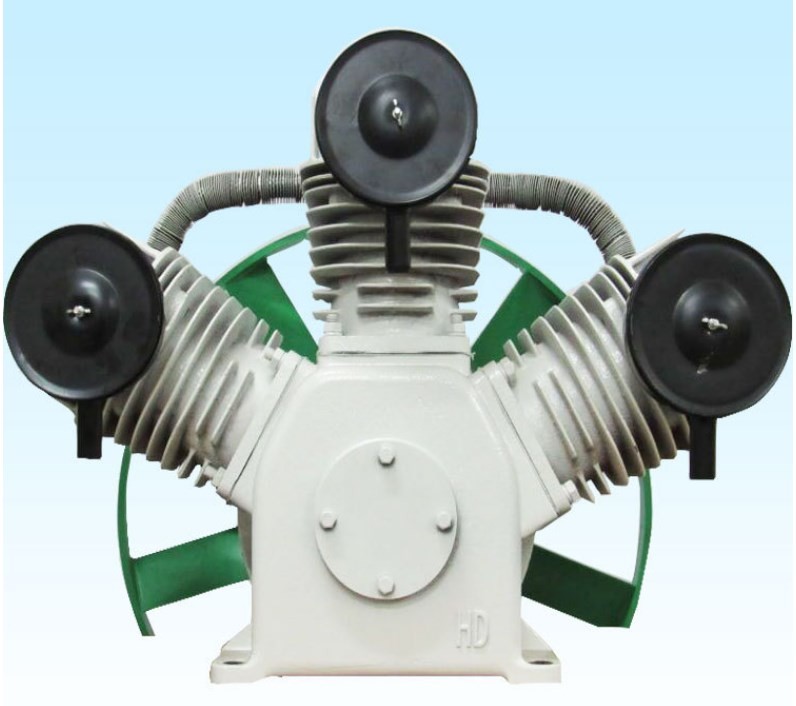

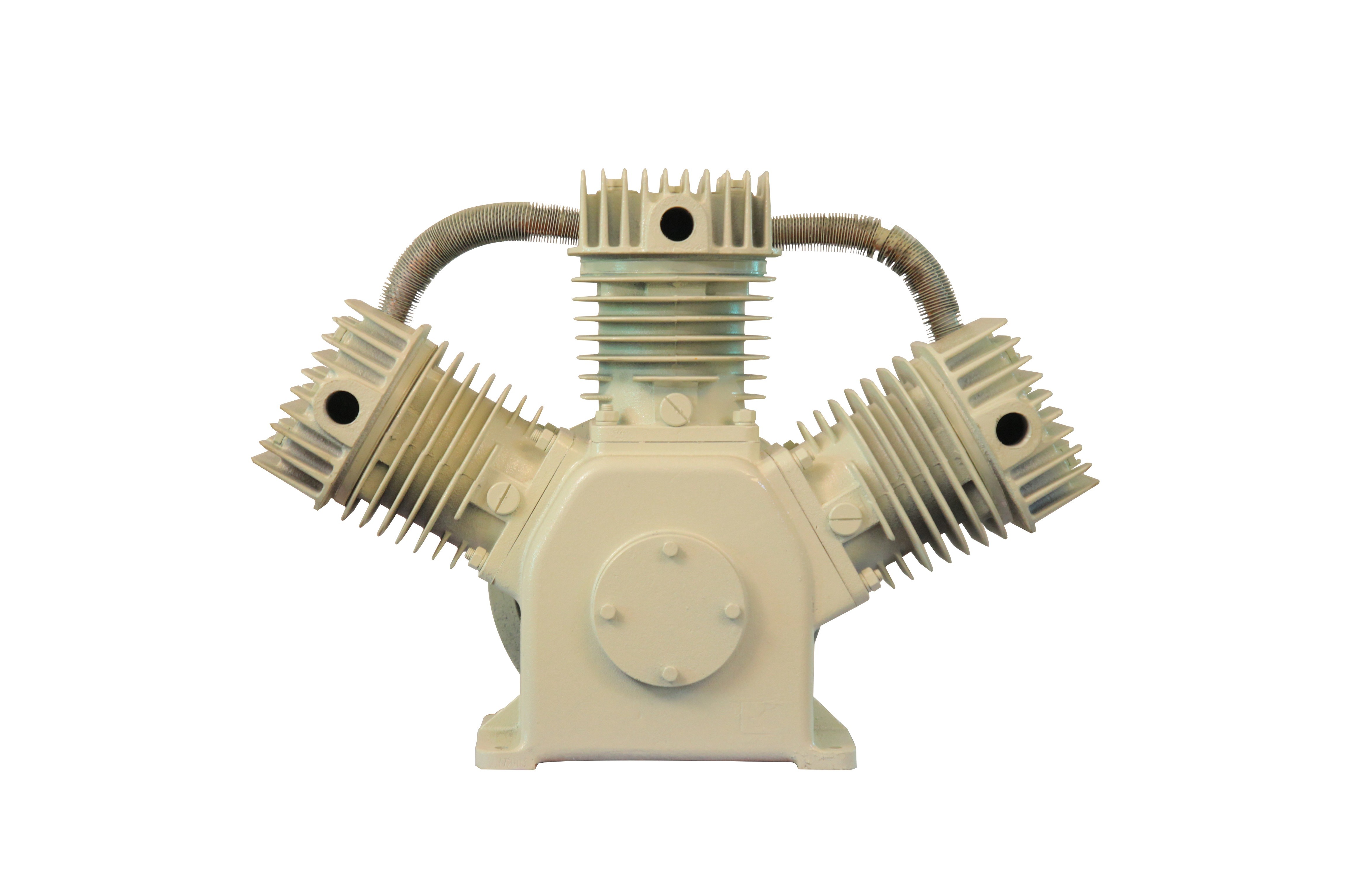

11KW/15HP Reciprocating Oil Free Piston Air Compressor Head Belt Driven



Product Description



1.The motor adopts copper coil, so that the compressor can achieve high power, high efficiency and high performance
2.Piston ring friction coefficient is small, self-lubricating
3.Cylinder sleeve surface hardening process, greatly reduce the thickness, speed up the heat transfer; Increased surface compactness and reduced friction coefficient, thus increasing service life;
4.Intake and exhaust valves adopt reasonable muffling design, which greatly increases volume efficiency and makes low noise.
5.The whole machine design considerate, mobile flexible, simple operation, convenient maintenance





11KW/15HP Reciprocating Oil Free Piston Air Compressor Head Belt Driven 0







Technical parameters



MODEL: DV-3120
Power(Kw/Hp): 11kw/15HP
Cylinder dia×No.(mm): 120×3
Speed(rpm): 1.6
Air Delivery(L/Min/m³/Min): 360/0.6
Voltage/Frequency(V/Hz): 220/50
Max Pressure(psi/bar): 115/8
Weight(Kg): 35
Dimension(L×W×Hmm): 650×550×455





Packaging & Shipping

Packaging Details
Standard export carton or plywood case 1pcs/box
Port
Shanghai/Ningbo



11KW/15HP Reciprocating Oil Free Piston Air Compressor Head Belt Driven 1

Our services



1.We promise to reply your inquiry relational our product within 24hours.

2.OEM&ODM service for your unique idea with absolutely convenient.

3.Experienced foreign trader with professional product knowledge.

4.Value on business credite , promise to protect your sales data, design,patent information.

5. Sample & OEM service is available

6. After-sales service. any question will be settled within 3 days



FAQ



1.Are you a factory or trading company?

A: Our company is a professional manufacturer and trader that is concerned with the design,development
and production
2. What is your delivery time?
A: 15 days for sample order, 30 days for container order. ( Busy season may need more days )
3. How long does delivery take?
A: After receive the deposit:
- Sample order:within 10-15 days;
- 20FT container: 20-25 days;
- 40HQ container: 30-35 days
4. Is OEM acceptable?
A:Yes. In addition to the stable products,OEM & ODM accepted. Please contact us for details.
