L'inscatolamento fotoelettrico della bustina lavora la scatola a macchina automatica che riempie 1700mm

  • Photoelectric Sachet Cartoning Machine Automatic Box Filling 1700mm
  • Photoelectric Sachet Cartoning Machine Automatic Box Filling 1700mm
  • Photoelectric Sachet Cartoning Machine Automatic Box Filling 1700mm
Luogo di origine La Cina
Marca CHIC
Certificazione CE ISO
Quantità di ordine minimo 1 pezzo
Imballaggi particolari L'interno d'imballaggio è film plastici e l'esterno è caso di legno di fumigazione. Il nostro caso d
Tempi di consegna 30 giorni lavorativi
Termini di pagamento L/C, T/T, Western Union
Capacità di alimentazione 20 pc /month

Contattimi gratis campioni e buoni.

whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

Se avete di preoccupazione, forniamo la guida in linea di 24 ore.

x
Dettagli
Nome Impacchettatrice d'inscatolamento di tè della bustina della scatola del tessuto della bustina bagnat Tipo determinato Elettrico
Tensione fase di 380V 50Hz 3 Capacità 50-60 cartoni/min
Dimensione 2800*1350*1700 millimetro Dimensione del cartone L: 70-200mm; W: 40-160mm; H: 15-70mm
Evidenziare

Macchina d'inscatolamento della bustina fotoelettrica

,

macchina d'inscatolamento della bustina di 1700mm

,

macchina di rifornimento automatica della scatola di 1700mm
Lasciate un messaggio
Descrizione di prodotto

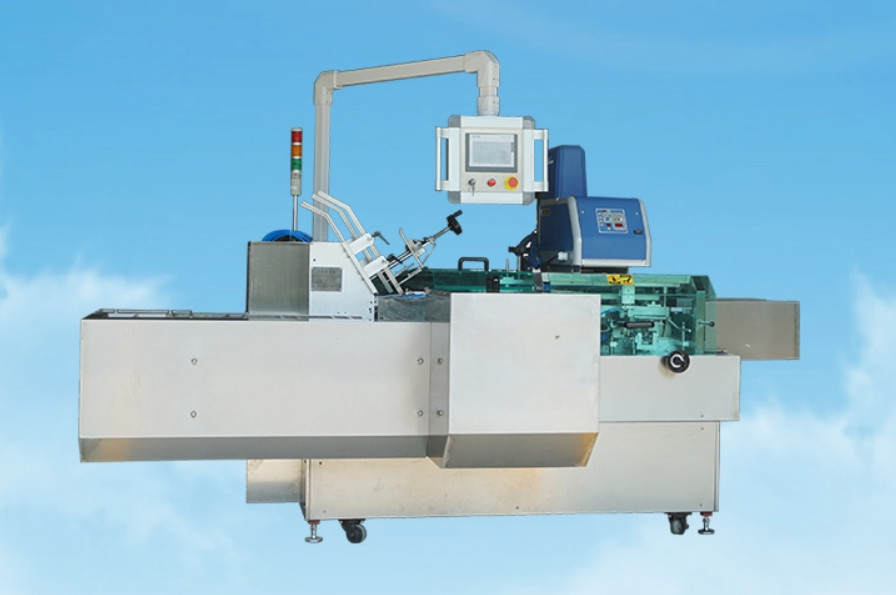

Full Automatic Tea Bag Box Facial Wet Tissue Boxing Sachet Cartoning Packaging Machine



Application:



Automatic Box Cartoning Machine is a hot sale product developed and manufactured by our company. It is applied to a variety of foods, toys, cosmetics, electronics and daily necessities. The working process is as follows: automatic box forming, feeding, folding, glue spraying and sealing. It saves a lot labour cost which equal of 8-20 workers.





Specifications :





Model No.
CHIC-ZHPJ-V3
Product Name
Automatic Box Cartoning Machine
Air Consumption
200-400L/min.
Power
5 kw
Voltage
380/220V 50Hz
Machine Weight
1000 – 1500 kgs
Overall Dimension
(L)2800mm x (W)1500mm x (H)1650mm
Box Packing Speed
40-60 boxes/min.
Box Material
250-350g/m2 or corrugated cardboard
Box Size
L: 70-200mm; W: 40-160mm; H: 15-70mm
Can be customized according to your box shape and size

Feature:



1, Adopt PLC automatic control system, frequency conversion. The electrical components adopt international famous brands.
2, Photoelectric system monitors all parts moving. If there is malfunction during the running, the wrong place will be shown and the machine can stop automatically.
3, Reject automatically the box which is lack of stuff or specification.
4, If the stuff or specification lack, the paper box will stop feeding.
5, Performance is stable. The operation is easy and convenience.
6, The machine can feed and box continually, the machine can instead of 15-20 the workload of workers.



machine accessory list:



No. Name Brand Made in
1 The main body Stainless steel China
2 electric elements Schneider / OMRON french/japan
3 pneumatic AIRTAC Joint venture
4 Bearing Luoyang China
5 servo motor Panasonic JAPAN
6 PLC Siemens German
7 Touch screen Siemens German
8 Driver Starlight transmission China

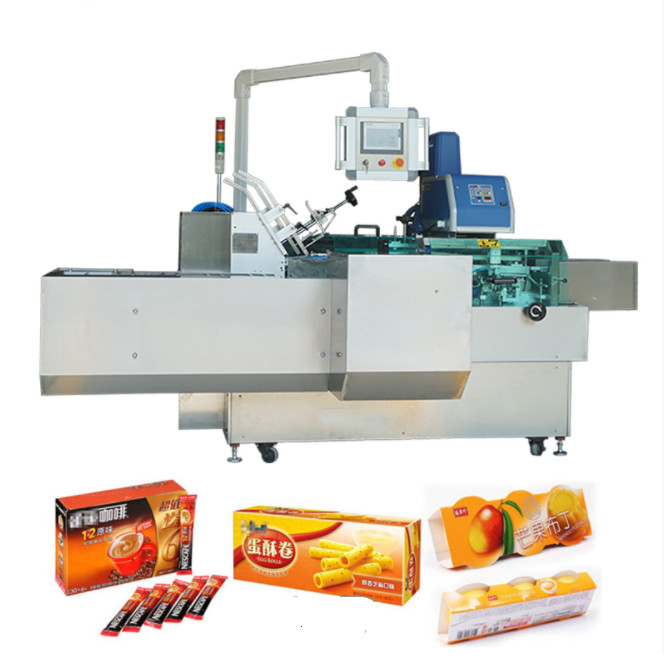

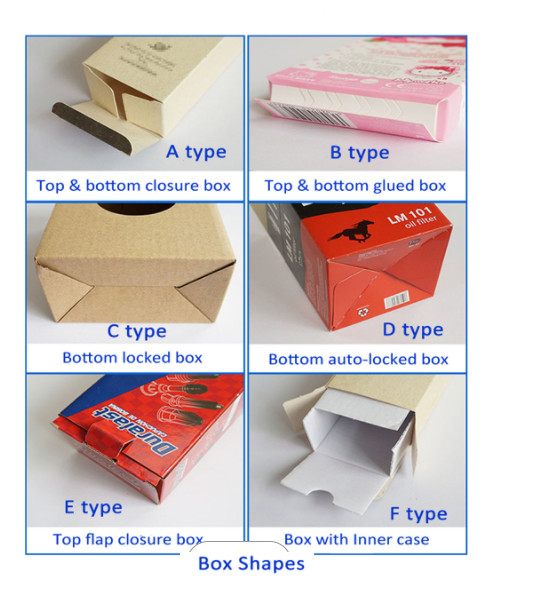

Samples:

L'inscatolamento fotoelettrico della bustina lavora la scatola a macchina automatica che riempie 1700mm 0

L'inscatolamento fotoelettrico della bustina lavora la scatola a macchina automatica che riempie 1700mm 1

Pre-Sale Service:



We will according your product feature, weight of each bag, and shape of bag make a quotation for your. Then more details we need communication sunch as material and thickness of film, dimension of bag you already have it or need we design for you, Operate language,what kind of voltage at the local.



After-Sale Service:



Warranty: 1 Year excep wearing parts ( Cutter, Belt, Horizontal and vertical Heating Tube etc)Most of components are free-replacement (PLC,Servo controller,Servo motor,Touch screen,cylinder) . Machine delivery will with a tool box, there have some parts is free.



Operation training: 1:Machine is very easy operate, delivery with manual, offer lot of photo and video when machine in assembling or disassembling. 2: Welcome to our factory learning. 3: Engineers available to service machinery overseas.

Kindly reminder:

Please let us know the follow packing details when you offer,so that we can check if this model is suitable for your case.Thank you in advance.

1. Product details

2. Bag width,bag length

3. Bag shape

4. Packing film material

5. Machine frame
