Maschera di riempimento d'inscatolamento automatica del preservativo del contenitore di macchina della maschera

  • Mask Automatic Cartoning Machine Box Filling Condom Mask
  • Mask Automatic Cartoning Machine Box Filling Condom Mask
Luogo di origine La Cina
Marca CHIC
Certificazione CE ISO
Quantità di ordine minimo 1 pezzo
Imballaggi particolari L'interno d'imballaggio è film plastici e l'esterno è caso di legno di fumigazione. Il nostro caso d
Tempi di consegna 30 giorni lavorativi
Termini di pagamento L/C, T/T, Western Union
Capacità di alimentazione 20 pc /month

Contattimi gratis campioni e buoni.

whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

Se avete di preoccupazione, forniamo la guida in linea di 24 ore.

x
Dettagli
Nome Impacchettatrice d'inscatolamento automatica d'inscatolamento del contenitore di bustina della borsa Tipo determinato Elettrico
Grado automatico Automatico pieno Tensione fase di 380V 50Hz 3
Capacità 30-125 cartoni/min Dimensione 2700mm*1140mm*1800mm
Evidenziare

Macchina d'inscatolamento automatica della maschera

,

Macchina d'inscatolamento automatica del preservativo

,

Macchina di rifornimento automatica della scatola della maschera del preservativo
Lasciate un messaggio
Descrizione di prodotto

Condom Bag sachet Cartoning Box Automatic Cartoning Packaging Machine



Application:

1. Blister cartoning machine

2. Tea bag cartoning machine

3. Automatic Bottle Cartoning Machine

4. Mask cartoning machine

5. Electronic cigarette cartoning machine

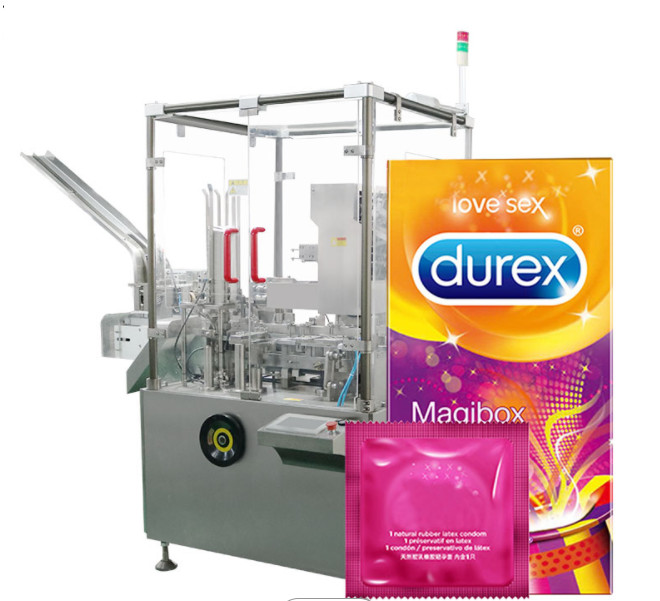

GMP Standard CHIC-ZH-120L Automatic vertical cartoning packing machine can packed various products such as aluminum plastic plate and aluminum aluminum plate, electronic cigarette,facial cleanser,ointment,Sealed pouch various bottled products.120L vertical cartoning packing machine can be connected with the blister packing machine,three dimensional transparent film wrapping machine and strapping machine to form a production line.

The automatic cartoning packing machine has strong compatibility and can pack products of various specifications on one machine.High degree of automation,from feeding,suction carton,forming,on line transmission,folding of leaflet(1-4 folds),material testing,products and leaflet pushing into carton,printing batch number,with top fold flaps,carton sealing(mechanical sealing or hot melt glue),lack of material detection and rejection all automatically completed.

Maschera di riempimento d'inscatolamento automatica del preservativo del contenitore di macchina della maschera 0

Specifications :



After-sale Provide Engineers available to service machinery overseas
Cartoning Machine Models 120L 120W 260W 450W
Power 1.1 KW 0.75 Kw 5 Kw 4.5 Kw
Capacity 125 Cartons/Min 125 Cartons/Min 260 Cartons/Min 450 Cartons/Min
Dimension

2150*1140*1800

mm

 3100*1100*1550 mm 6800*1600*1860 mm 4800*1800*2000 mm
Weight 1500kg 1600 Kg 3400 Kg 5500 Kg




Feature:



-1.This equipment is specially designed for small output and multi-size carton packaging.

-2.Small footprint, economical and practical and suitable for a variety of boxes.
-3.Save labor cost, 40 boxes per person per minute, greatly improving production efficiency.
-4.The whole equipment is made of stainless steel 304.
-5.The equipment adopts advanced PLC control with touch screen operation function, and the production speed can be adjusted at will without adjusting any other parameters.
-6.Advanced electrical control system: the imported encoder is used to control the electrical centralized, which is convenient to use and simple to operate.
-7.The first carton feeding system in China, which realizes the function of adding new carton without stopping the machine.
-8.This equipment can be connected with the front-end liquid filling machine, aluminum-plastic packaging machine, pillow packaging machine and other packaging machines, and realize fully automatic work. The back end can be connected to the labeling machine, strapping machine, heat shrinking machine and three-dimensional packaging machine.
-9.Available optional functions: print production date, automatically add instructions, hot melt adhesive sealing device, automatic feeding device, etc.



Machine accessory list:


Item parts Specification Qty. Manufacturer
Servo motor/driver 400W MHMD042G1U/400W MBDHT2510E 1/1 Panasonic
Main motor R17DT80N4 0.75KW/220V/380V 1 Germany SEW
Frequency converter FC-051P1K5S2E20H 1 Danfoss
Relay MY2NJ/24VDC 5 Japan Omron
Touch screen GC—4408W 1 Proface
PLC Smart ST40 1 Germany Siemens




FAQ



Q1: How to find a Packing machine suitable for my product?



Tell us about your product details and packing requirements.



1. What kind of product?

2. Production size or bag/sachet/pouch/carton size of you need for the product packing ( the length, width).

3. The weigh of each pack you need.

4. You requirement for the machines and the bag/carton type.



Q2: Are you a real factory/manufacturer?



Of course. Our factory is inspected by third party. We much welcome you to visit us and free to pick you up form hotel.



You don’t have time? We can use live video and you can visit us on line.



Q3: Is engineer available to serve oversea?



Yes, we can send engineers to your factory but all the fee will be on buyers.



In order to save your cost, we will send you a video of full details machine installation and assist you till the end.



Q4. How can we make sure about the machine quality after placing the order?



Before delivery, we will running half hour of the machine to checking the stability and sending you the testing video until you satisfy. We will setting all the parameters well.



And also you can arrange for quality checking by yourself or by your contacts in China.



Q5. We are afraid you won't send us the machine after we send you the money?



We have our business license and certificate. And it is available for us to use trade assurance service, protect your money, machine quality and delivery are guarantied



Q6. Can you explain me the whole transaction progress ?



1. Sign the Contact/order on we have trade assurance.

2.Arrange 30% deposit to our factory



3.Factory arrange production



4.Testing & detecting the machine before shipping



5.Inspected by customer or third agency through online or site test.



6. Arrange the balance payment before shipment.

Q7: Will you provides the delivery service?



A: Yes. Please inform us of your final destination, we will check with our shipping agent to quote the shipping cost for your reference before delivery.
