Macchina d'inscatolamento automatica dei guanti medici che imballa 1800mm
| Luogo di origine | La Cina |
|---|---|
| Marca | CHIC |
| Certificazione | CE ISO |
| Quantità di ordine minimo | 1 pezzo |
| Imballaggi particolari | L'interno d'imballaggio è film plastici e l'esterno è caso di legno di fumigazione. Il nostro caso d |
| Tempi di consegna | 30 giorni lavorativi |
| Termini di pagamento | L/C, T/T, Western Union |
| Capacità di alimentazione | 20 pc /month |
Contattimi gratis campioni e buoni.
whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
Se avete di preoccupazione, forniamo la guida in linea di 24 ore.
xDettagli
| Tipo | Macchina d'inscatolamento d'imballaggio medica automatica della scatola per guanti | Tipo determinato | Elettrico |
|---|---|---|---|
| Grado automatico | Automatico pieno | Tensione | fase di 380V 50Hz 3 |
| Capacità | 30-120 cartoni/min | Dimensione | 3400*1450*1800 millimetro |
| Evidenziare | Macchina d'inscatolamento automatica medica,macchina d'inscatolamento automatica di 1800mm,impacchettatrice d'inscatolamento di 1800mm |
||
Descrizione di prodotto

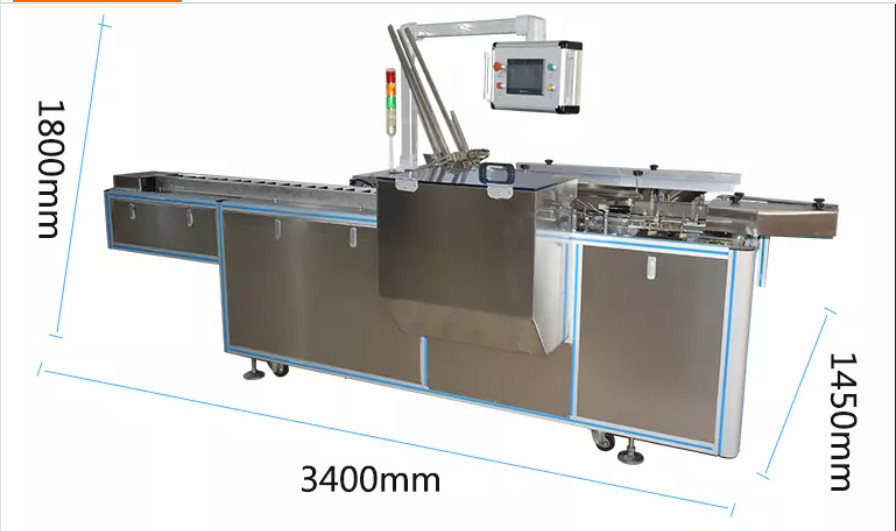

Automatic Medical gloves box packing cartoning machine
Application:
The cartoning machine is a star product developed and manufactured by our company. It is applied to a variety of foods and daily necessities. The operation process is as follows: automatic carton forming, automatic feeding, automatic forming of carton hooks, and bottoming of products. Push the paper tray and seal the box.
Specifications :
|
Model |
CHIC-120E CHIC-180E |
|
Packing speed |
40-70box/min |
|
The carton size |
L70-180 W35-80 mm ( customize) |
|
Paper box paper requirements
|
Gray paperboard: 300-350g/m3 White cardboard : 250-350g/m3 Corrugated paper:Take the sample to confirm |
|
The motor power |
1.5KW |
|
Power source type |
220V 50Hz |
|
The machine noise |
≤80 dB |
|
Gas source |
0.5-0.8 Mpa |
|
Gas consumption |
20m3/h
|
|
Overall dimensions |
3400*1450*1800 mm
|
|
The weight |
1200Kg |
Feature:
The sealing system has the functions of opening box, loading material, folding, inserting box, sealing box and so on. The fuselage is made of steel structure, the outer surface is painted with baking paint, and the parts touching the color box are all made of high-quality stainless steel and aluminum. The surface is polished, which has a beautiful appearance and does not pollute the environment.
machine accessory list:
| No. | Name | Brand | Made in |
| 1 | The main body | Stainless steel | China |
| 2 | electric elements | Schneider / OMRON | french/japan |
| 3 | pneumatic | AIRTAC | Joint venture |
| 4 | Bearing | Luoyang | China |
| 5 | servo motor | Panasonic | JAPAN |
| 6 | PLC | Siemens | German |
| 7 | Touch screen | Siemens | German |
| 8 | Driver | Starlight transmission | China |

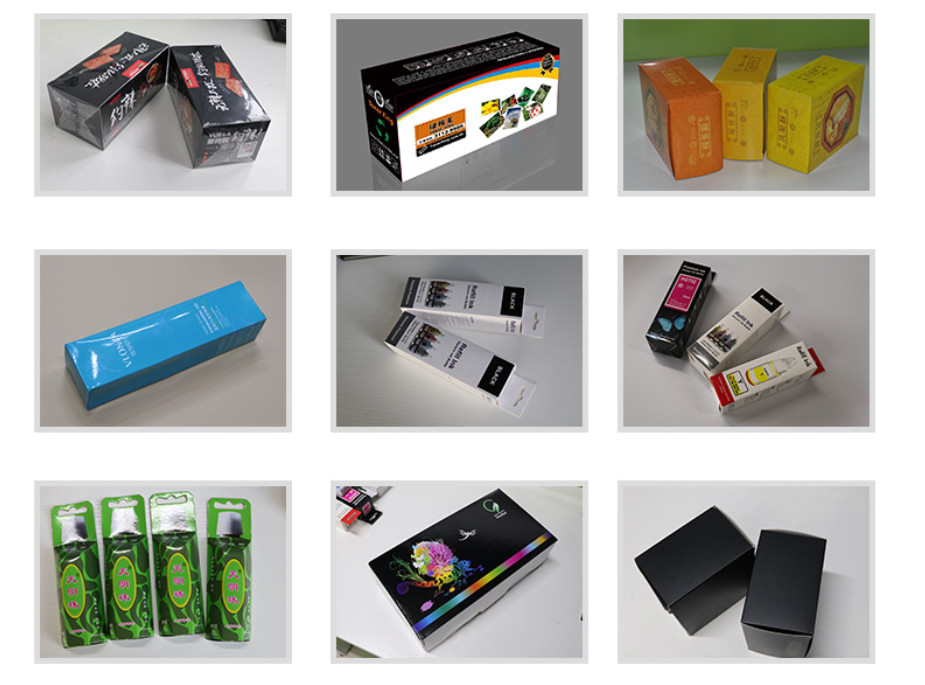

Samples:
FAQ
Q1: How to find a Packing machine suitable for my product?
Tell us about your product details and packing requirements.
1. What kind of product?
2. Production size or bag/sachet/pouch/carton size of you need for the product packing ( the length, width).
3. The weigh of each pack you need.
4. You requirement for the machines and the bag/carton type.
Q2: Are you a real factory/manufacturer?
Of course. Our factory is inspected by third party. We much welcome you to visit us and free to pick you up form hotel.
You don’t have time? We can use live video and you can visit us on line.
Q3: Is engineer available to serve oversea?
Yes, we can send engineers to your factory but all the fee will be on buyers.
In order to save your cost, we will send you a video of full details machine installation and assist you till the end.
Q4. How can we make sure about the machine quality after placing the order?
Before delivery, we will running half hour of the machine to checking the stability and sending you the testing video until you satisfy. We will setting all the parameters well.
And also you can arrange for quality checking by yourself or by your contacts in China.
Q5. We are afraid you won't send us the machine after we send you the money?
We have our business license and certificate. And it is available for us to use trade assurance service, protect your money, machine quality and delivery are guarantied
Q6. Can you explain me the whole transaction progress ?
1. Sign the Contact/order on we have trade assurance.
2.Arrange 30% deposit to our factory
3.Factory arrange production
4.Testing & detecting the machine before shipping
5.Inspected by customer or third agency through online or site test.
6. Arrange the balance payment before shipment.
Q7: Will you provides the delivery service?
A: Yes. Please inform us of your final destination, we will check with our shipping agent to quote the shipping cost for your reference before delivery.
