Cartonista automatico d'inscatolamento automatico cosmetico elettrico ZH120 della macchina

  • Electric Cosmetic Automatic Cartoning Machine Auto Cartoner ZH120
  • Electric Cosmetic Automatic Cartoning Machine Auto Cartoner ZH120
  • Electric Cosmetic Automatic Cartoning Machine Auto Cartoner ZH120
Luogo di origine La Cina
Marca CHIC
Certificazione CE ISO
Quantità di ordine minimo 1 pezzo
Imballaggi particolari L'interno d'imballaggio è film plastici e l'esterno è caso di legno di fumigazione. Il nostro caso d
Tempi di consegna 30 giorni lavorativi
Termini di pagamento L/C, T/T, Western Union
Capacità di alimentazione 20 pc /month

Contattimi gratis campioni e buoni.

whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

Se avete di preoccupazione, forniamo la guida in linea di 24 ore.

x
Dettagli
Tipo I prodotti medici cosmetici inscatolano l'impacchettatrice d'inscatolamento Tipo determinato Elettrico
Tensione fase di 380V 50Hz 3 Capacità 50-100 cartoni/min
Dimensione 3700*1350*1700 millimetro Dimensione del cartone La dimensione massima 200*120*70mm
Evidenziare

Macchina d'inscatolamento automatica ZH120

,

Macchina d'inscatolamento automatica cosmetica

,

macchina automatica del cartonista
Lasciate un messaggio
Descrizione di prodotto

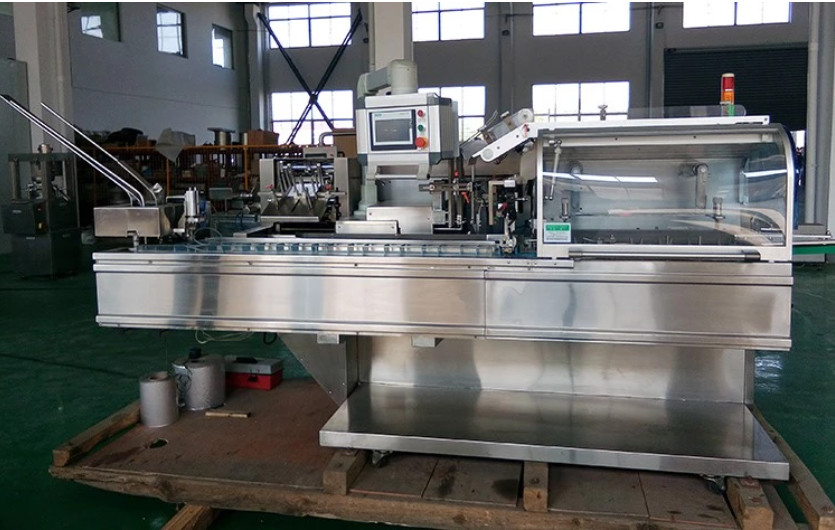

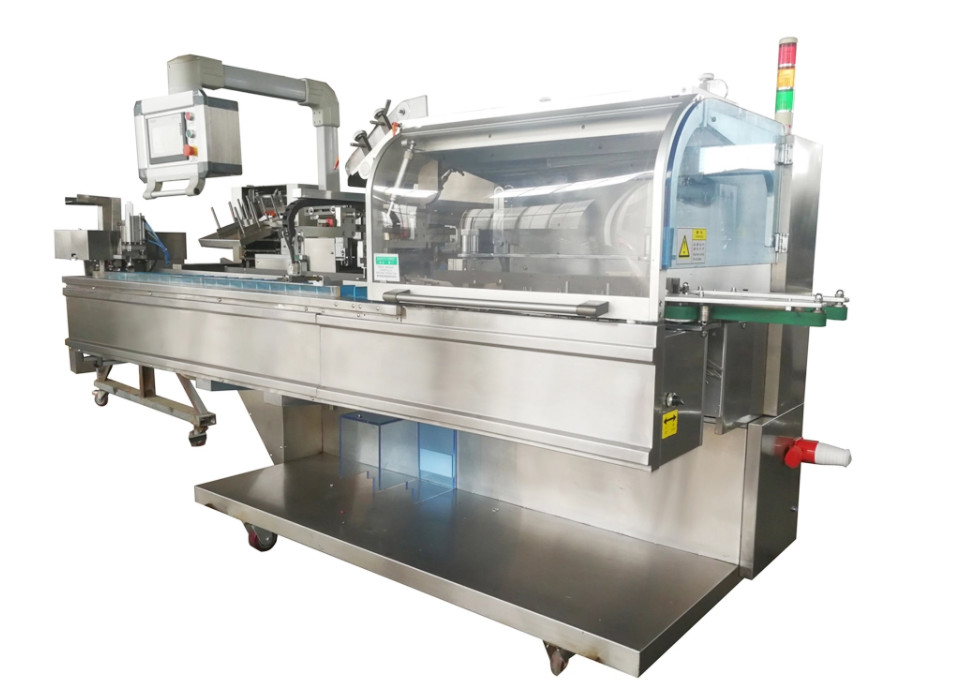

Cosmetic Medical Products Carton Cartoning Packaging Machine



Application:



This product is the new model which is our company further improved on the basis of advanced technologies at home and abroad. The machine is the high-tech products which integrates electricity, gas, light.



The product is suitable for boxing the Aluminum-Plastic blister card, medicine bottle, cosmetic, poker, electronic and daily.



The machine can finish automatically all jobs such as manual folding, paper box opening, the stuff boxing, batch number printing, box sealing and so on. It can be used alone, or be linked with the other device.





Specifications :





Model ZH120
Production capacity 50-100 b/min
Packing material

the max. size 200×120×70mm

the min. size 50×25×12mm
Box quality

250-300 g/m2

According to its dimensions to confirm
Operation manual max .size 260×180mm
min. size 110×100mm
paper weight 55-65g
Volume of consumption 20 M3/h(pressure 0.5-0.7MPa)
Total power 1.5KW
Packing material The max. size 200×120×70mm
Electric power 380V 50HZ
Overall dimension 3700×1350×1700mm
weight 1800



Feature:



1,Adopt PLC automatic control system, frequency conversion. The electrical components adopt international famous brands.
2,Photoelectric system monitors all parts moving. If there is malfunction during the running, the wrong place will be shown and the machine can stop automatically.
3,Reject automatically the box which is lack of stuff or specification.
4,If the stuff or specification lack, the paper box will stop feeding.
5,Performance is stable. The operation is easy and convenience.
6,The machine can feed and box continually, the machine can instead of 15-20 the workload of workers.



machine accessory list:



No. Name Brand Made in
1 The main body Stainless steel China
2 electric elements Schneider / OMRON french/japan
3 pneumatic AIRTAC Joint venture
4 Bearing Luoyang China
5 servo motor Panasonic JAPAN
6 PLC Siemens German
7 Touch screen Siemens German
8 Driver Starlight transmission China

Samples:

Cartonista automatico d'inscatolamento automatico cosmetico elettrico ZH120 della macchina 0

Pre-Sale Service:



We will according your product feature, weight of each bag, and shape of bag make a quotation for your. Then more details we need communication sunch as material and thickness of film, dimension of bag you already have it or need we design for you, Operate language,what kind of voltage at the local.



After-Sale Service:



Warranty: 1 Year excep wearing parts ( Cutter, Belt, Horizontal and vertical Heating Tube etc)Most of components are free-replacement (PLC,Servo controller,Servo motor,Touch screen,cylinder) . Machine delivery will with a tool box, there have some parts is free.



Operation training: 1:Machine is very easy operate, delivery with manual, offer lot of photo and video when machine in assembling or disassembling. 2: Welcome to our factory learning. 3: Engineers available to service machinery overseas.

Kindly reminder:

Please let us know the follow packing details when you offer,so that we can check if this model is suitable for your case.Thank you in advance.

1. Product details

2. Bag width,bag length

3. Bag shape

4. Packing film material

5. Machine frame
